Three Color Flexo Printer Slotter 900x2000/2400 Full Automatic Flexo Printing Slotting Machine Mini Flexo Printer Slotter for Small Boxes with Competitive Price from South of China

BRIEF INTRUCTION

1. Three Color Flexo Printer Slotter, also named as corrugated box making machine, is to process corrugated cardboard into products such as cartons, boxes, trays, display etc. It specially be used to make the products with 1-3 color image.
2. The standard model of three color flexo printer slotter include SP-Q2-0920/1224/1628, also Q2-0922/1228/1632 can be custom-made.
3. The gap adjustment is controlled by manual with self-locking handle and sheet transferred by pull roller. It is economic one with high performance and cost saving.

The Q2 featured with the functions as below marked by “√”.

SPECIFICATION

FEATURES

Feeding Unit

1. Lead edge feeder with vacuum absorber.
2. Upper Dust remover with brushers
3. Sheet transfer with rubber pull rolls.
4. Gap of feeding rollers are manual with self-locking, Side baffles are motorized.

Printing Unit

1. Sheet transfer with Roll-To-Roll.
2. Anilox roller with rubber roller inking or Anilox roller with Chambered doctor blade system for choosing.
3. Quick replacing of rubber roller.
4. Gap of anilox roller, printing drum and pull roller are manual with self-locking. And horizontal and vertical movement are motorized.

Slotting Unit

1. Sheet transfer with rollers.
2. 6-shafts rotation: Pre-creasing, Creasing, Single shaft slotting.
3. All slotting knife holders connect with creasing rings and slotting knifes, synchronously moving in horizontal position.
4. Gaps of creasers and slotting knifes are manual with self-locking. And box height, registering and vertical moving are computerized with order managing.

Die cutting Unit

1. Sheet transfer with rollers.
2. Upper die cutting rubber roller is driven by mechanical line speed compensation.
3. Shaft-head treated with lock, not welding, given strong capacity of bearing pressure.
4. Gaps of feeding is manual with self-locking, and registering and vertical moving are motorized.

Auto Stacker

1. Stacking height 1800mm.
2. By hydraulic control lifting.

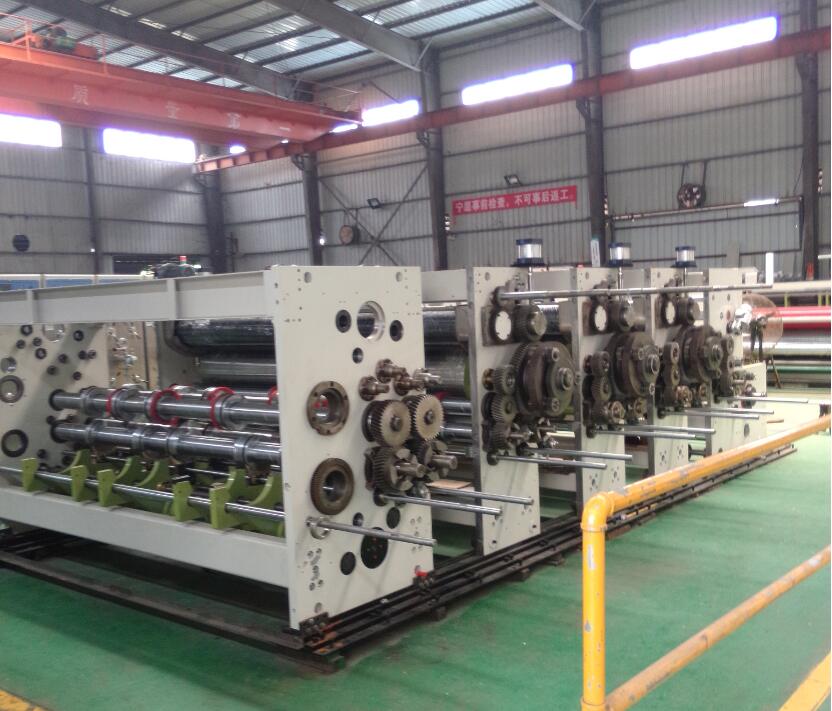

The Photo of Machine

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making
Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial
foundation and complete processing. We have accumulated a lot of experience and technology in the process of
production and serving customers, we are familiar with each industrial production process, takes this as the technical
basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous
Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully
automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish
Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton
Related Machines, can also custom made according to customer's requirements.

Toprint seeks to develop together with customers, customer demand is our pursuit, and we will meet the needs of
customers with high-quality products and good service. Products carry out lifelong service, long-term supply of spare
parts and after-sales service and etc..

Service commitment: 48 hours arriving of emergency failure (domestic),reply within 8 hours of pre-sale and after-
sale consultation.

We make difference,Dedicated, Professional, Pay attentions on Each Machine!
We make difference, Honestly Toprint, let every Customer being satisfied!
We make difference,Pioneering and Innovative, Excelsior,GD.Toprint!
We make difference,CR CHR Series take us to create Brilliant!
