High Speed Corrugated Carton Box Die Cutting Machine Rotary Die Cutting Machine RDC Machine for Carton Box Making

SUMMARY OF MACHINE

SP-RDC0920/1224/1628 Series Rotary Die Cutting Machine is especially used for die-cutting boxes, with Lead Edge Feeder, easy to operate and maintain.

THE MAIN FEATURES:

1. Machine frame: 65mm.
2. Lead edge feeding suitable for all kind of printed cardboard, more benefits for wrap and bend ones.
3. The Die-cutting anvil is made of seamless steel pipe (outer diameter 303mm, including anvil cover 320mm), precision ground, chrome plated and balance corrected, adopts shaft locking system, the thermal refining of shaft core to make it become more anti-fatigue and toughness.
4. The Die-cutting anvil is covered with Italy Policart Anvil cover, and it’s dismountable for easy changing.
5. Mechanical differential structure is adopted for transverse moving for a range of 30mm, which enables anvil cover wear uniform, and prolongs its life time.
6. The gap of die-cutting anvil is motorized adjusted, digital display, and the adjustment range: 0-11mm.
7. The Die-cutting cylinder is made of seamless steel pipe (outer diameter 257mm, including anvil cover 305mm), precision ground, chrome plated and balance corrected, adopts shaft locking system, the thermal refining of shaft core to make it become more anti-fatigue and toughness.
8. Cross line engraved on the surface of die-cutting cylinder. M10 screw holes are attached, and holes distance is international standard.
9. Wooden die height is H24mm for easy installation.
10. Upper guiding roller is made of solid steel pipe, precision ground, chrome plated and balance corrected, with 2pcs grooved guiding rings, can be quickly adjusted by hand.
11. The lower roller is made of solid steel pipe, precision ground, chrome plated, balance corrected.
12. The gap of lower roller is motorized adjusted with self-locking system, dial display, the adjustment range: 0-11mm.
13. Planetary gear structure is adopted for die-cutting register, 360ºprecisely adjusted.

THE MAIN PARAMETERS:

About Us

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial foundation and complete processing. We have accumulated a lot of experience and technology in the process of production and serving customers, we are familiar with each industrial production process, takes this as the technical basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton Related Machines, can also custom made according to customer's requirements.

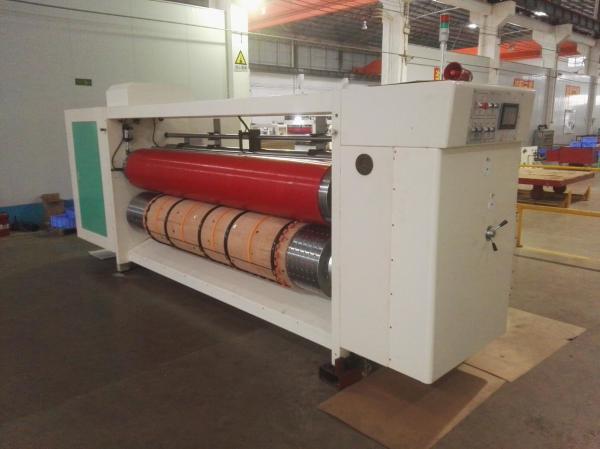

MACHINE PHOTOS
