Servo Control Corrugated Box Die-cutting Machine Carton Box Printing Machine Slotting for making All kind of Corrugated Carton Boxes with High Speed and Economic Cost

PRE-FEEDER

1. Feeding belt speed frequency control.
2. Side Baffle automatic positioning.
3. One button order rangement with memory.
4. Feeding Conveyor Lifting hydraulic control.
5. Pushing device falling, return, up, down use hydraulic control.
6. Flexo Printer machine return, pre-feeder return together.
7. Oil pressure standby function (overset time automatic standby).
8. The machine adopts a new wear-resistant track.
9. Feeding belts are wide belts.
10. Friendly HMI for operation and adjusting.
11. Abnormal text display is easy to quickly remove.
12. Oil box anti-vibration treatment.

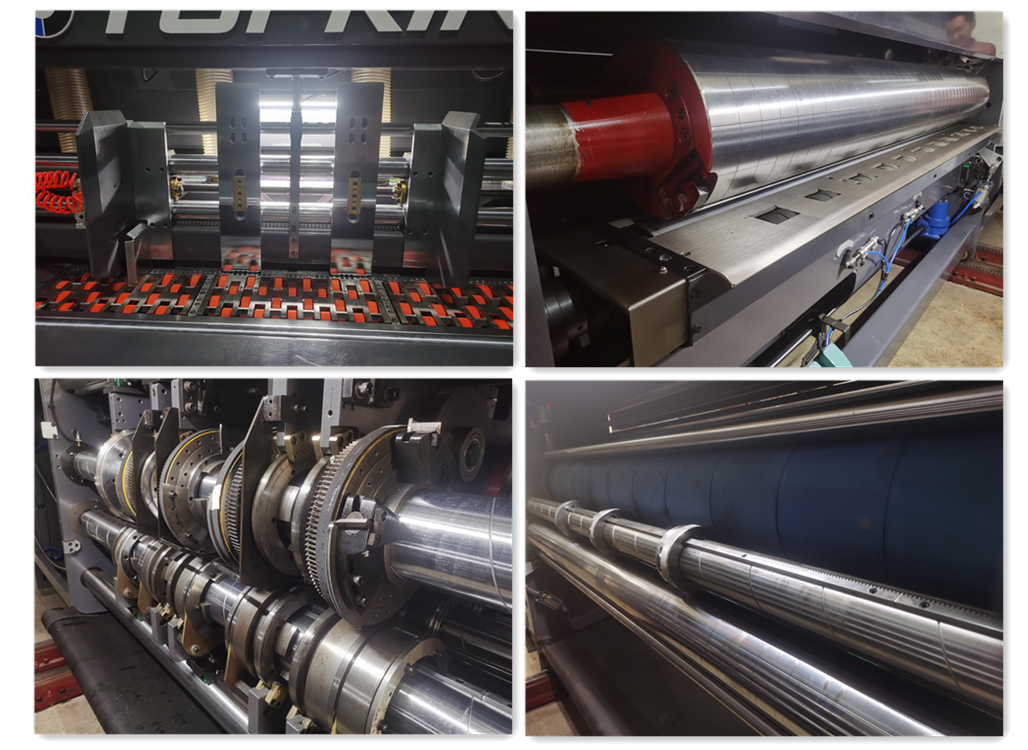

FLEXO PRINTER SLOTTER RDC

1. Fast order change and set-up by data inputting or Order Management System.
2. Easy to adjust and operate by friendly HMI with Touch Screen and PLC control.
3. Order storage quantities can be reach to 100,000, free storage for all orders.
4. Advanced feeding device adopts lead edge feeder, each to replace feeding wheels.
5. Feeding Unit: which stacks and squares the incoming board before introducing it into the machine at the required speed
6. Flexographic Printing Units: multi-colors, one for each color required, cardboard transmit by a vacuum transfer device, more benefits for bend, wrap and thin cardboards.
7. Slotting Units: combined the function of crease and slotting together, which used to make cardboard into a fixed shape, two slotting unit structure can be choose, 8 axis structure with Pre-creasing, widen creasing, thin creasing, single shaft dual slotter knifes or dual shaft slotter knifes as optional.
8. Die-cutting Unit: Heavy duty die-cutter is an optional unit, which used to make any complex shape of carton, when make die-cutting boxes, a special horizontal conveyor might be required as an optional to deliver the die-cutting boxes out independently via stacker.

THE MAIN PARAMETERS:

VIBRATOR & AUTO STACKER

1. Vibrating shaft driven by independent motor. There are four vibrating points in shaft to fasten the vibrating frequency.
2. The cylindroids belts tie on the vibrating shaft was made of good-quality product with high elasticity, which also driven by independent motor, and can protect paperboard from damage.
3. Conveyor shaft engraved U-shape slot, which help to choose the right size of belts according to actual paperboard size. It can avoid damage caused by deflection.
4. Back end in cleaner part adopted air blower and brush devices, which also help to shake and sweep off them finally.
5. Tilting convey guidance with belts under cleaner part helps to convey off the scraps.
6. Pneumatically control of side striking (single side).
7. Side striking guide position is manually adjusted.
8. Backstop position is manually adjusted.
9. Stacking deck is driven by pneumatic device.
10. Stacking height pre-set is available.
11. Gantry type hydraulic lifting structure.
12. Protective safety device is adopted to avoid chain breakage.
13. Dual protective safety device is adopted to make sure the limit switch in normal service condition.
14. Flat conveyor belts are attached with tension adjusting device.
15. Strong friction belts to avoid sheet gliding when uploading.
16. Arm height is pneumatically controlled by the hand valve.
17. Flat belts are with strong friction.

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making
Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial
foundation and complete processing. We have accumulated a lot of experience and technology in the process of
production and serving customers, we are familiar with each industrial production process, takes this as the technical
basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous
Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully
automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish
Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton
Related Machines, can also custom made according to customer's requirements.

Toprint seeks to develop together with customers, customer demand is our pursuit, and we will meet the needs of
customers with high-quality products and good service. Products carry out lifelong service, long-term supply of spare
parts and after-sales service and etc..
