Full Computerized High Speed Top Print Flexo Printing Slotting Die-cutting (RDC) Machine for Making all Kinds of Corrugated Carton Boxes with Vibrator & Auto Counter Stacker

GNERNAL FEATURS

1. Flexo Printing Slotting Machine, named as corrugated box maker, is designed to process corrugated cardboard into products such as cartons, boxes, trays, displays etc.
2. Flexo Printing Slotting Machine consists of feeding unit, printing unit, slotting unit, die-cutting unit and auto stacker. All of units can be locked when it works and moveable for cleaning and maintaining.
3. Integrated CNC Control system, trouble shooting, production management system, remote control for maintenance, can connect with ERP system.
4. Quick printing plate mounting, motorized phase zero, register servo control.
5. Powerful dust remover, combined with 3-4 dust blowers, anti-static bar, anti-brushes.

Vibrating Unit

1. The cardboard splicing arm is equipped with a paper pressing device to make the cardboard smooth falling; and the front catching platform adopts pneumatic lifting structure, which can adapt to the die of different printing machines.
2. The front of vibrator is equipped with a medium pressure fan to achieve the effect of cleaning waste, and in the same time to make sure the cardboard can be fastened to the conveyor belt and transport smoothly.
3. The cleaning device is composed of double vibrating cleaning structure, each vibrating cleaning structure is driven by independent motor, and get a better cleaning effect by different jitter frequency.
4. Dithering belt adopts imported cylindrical high elastic belt, which is not easy to aging; it is not easy to damage cardboard under high-speed dithering.
5. The cylindrical belt shaft with semi-circular groove can adjust the belt position freely, adapt to the production demand of all kinds of special-shaped paperboard, and realize distribution of one to two, one to three cardboard (Counter Stacker Optional).
6. The back end of vibrator is equipped with an axial flow fan and brush device to make the shaken waste paper fall from the cardboard to achieve the best effect of the waste cleaning.
7. The two sides of vibrator is equipped with a flat belt and a waste paper guide board at the back end of vibrator, which is convenient to completely output the waste paper and saves the waste paper cleaning work.
8. All motors of vibrator are controlled by independent button and can be operated separately according to production demand.

Auto Stacker

1. The cardboard conveyor platform adopts a new type of aluminum structure, reduces the weight of the machine, adjusts conveniently, and can meet all kinds of production requirements. The platform is controlled by hydraulic system, the structure is reliable and the operation is stable.
2. Cardboard counting structure composed of back-end cardboard holding part and PLC and photoelectric switch, the counting is accurate and fast (Optional). and realize distribution of one to two, one to three cardboard.
3. Auto stacker can realize automatic and manual operation mode according to different requirements. The front cardboard splicing platform adopts pneumatic lifting structure, which makes easy disassemble and assemble of wooden die.
4. The front cardboard splicing arm is equipped with a paper pressing device to make the paperboard more stable moving; the back-end is equipped with a sun wheel cardboard pressing device to make the cardboard fall horizontally.
5. The cardboard splicing baffle can adjust according to cardboard length manually by handwheel, so as to adapt to stack different shapes of cardboard.
6. Main components and suppliers: Taiwan Fatek PLC , Inovance frequency converter, Schneider low voltage electrical appliances, Taiwan CPG motor, FK bearings.

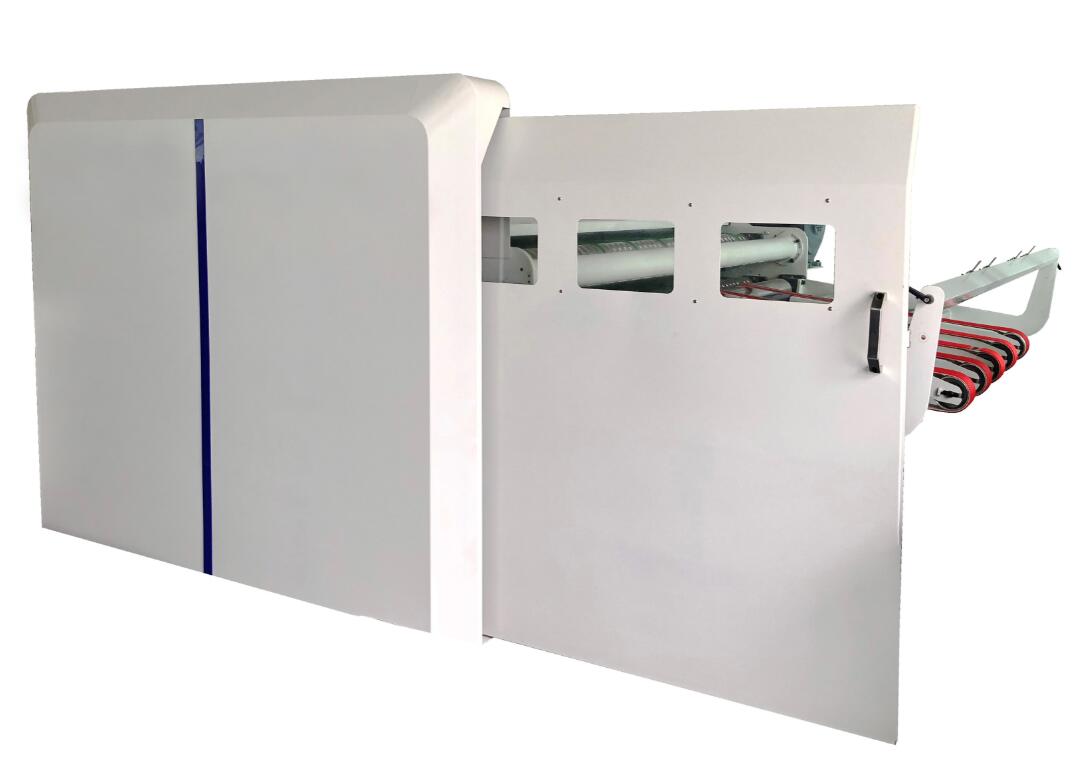

Photos of Machine

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making
Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial
foundation and complete processing. We have accumulated a lot of experience and technology in the process of
production and serving customers, we are familiar with each industrial production process, takes this as the technical
basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous
Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully
automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish
Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton
Related Machines, can also custom made according to customer's requirements.

Toprint seeks to develop together with customers, customer demand is our pursuit, and we will meet the needs of
customers with high-quality products and good service. Products carry out lifelong service, long-term supply of spare
parts and after-sales service and etc..

Service commitment: 48 hours arriving of emergency failure (domestic),reply within 8 hours of pre-sale and after-
sale consultation.

We make difference,Dedicated, Professional, Pay attentions on Each Machine!
We make difference, Honestly Toprint, let every Customer being satisfied!
We make difference,Pioneering and Innovative, Excelsior,GD.Toprint!
We make difference,CR CHR Series take us to create Brilliant!
