Full Computerized High Speed Vacuum Transfer Top Flexo Printing Slotting Die-cutting (RDC) Machine for Making all Kinds of Corrugated Carton Boxes Save Labor and Materials


GNERNAL FEATURS

1. Flexo Printing Slotting Machine, named as corrugated box maker, is designed to process corrugated cardboard into products such as cartons, boxes, trays, displays etc.
2. Flexo Printing Slotting Machine consists of feeding unit, printing unit, slotting unit, die-cutting unit and auto stacker. All of units can be locked when it works and moveable for cleaning and maintaining.
3. Integrated CNC Control system, trouble shooting, production management system, remote control for maintenance, can connect with ERP system.
4. Quick printing plate mounting, motorized phase zero, register servo control.
5. Powerful dust remover, combined with 3-4 dust blowers, anti-static bar, anti-brushes.

FLEXO PRINTER SLOTTER DIE-CUTTER RDC

Main Control System
Windows base CNC Control System
Remote maintenance
Huge order saving quantities
Trouble-shooting
Optimized order memory
Production and order management system
Can connect with ERP system


Feeding Unit

1. Operation can be controlled by both main computer and each unit touch screen.
2. Accurate and low pressure feeding, adjustable air control, precision registration.
3. Precision liner guideway lateral moving
4. Motorized side squaring and paper support
5. Powerful dust remover, combined with 3-4 dust blowers, anti-static bar, anti-brushes.

PRINTING SECTION

1. Operation can be controlled by both main computer and each unit touch screen.
2. Top print, high precision transfer structure with ceramic vacuum transfer wheels, good registration accuracy.
3. Quick printing plate mounting, register servo control, automatic back to zero position.
4. Ceramic Roller as standard, Chambered doctor blade as optional.
5. Ink saving circulation system, safety link taking, short ink alarm.
6. USA ARO ink pump.

SLOTTER CREASER SECTION

1. Operation can be controlled by both main computer and each unit touch screen.
2. Linear guideway lateral moving device combined with lead screw for smooth move and universal cross joint.
3. Pre-creaser, Creaser, Re-creaser, Slotting holder computerized control with balance system.
4. Box height computerized control or by order management system.
5. Middle knife is movable for more large boxes.

DIE CUTTER SECTION

1. Operation can be controlled by both main computer and each unit touch screen.
2. Up Cylinder, clean up scraps thoroughly, motorized die-cutting pressure control.
3. Policat quick change anvil with grinding system, precision settable speed difference compensation to increase die-cutting accuracy.
4. With scraps remove belt for easy cleaning.
5. Die-cutting Register servo control.
6. Auto zero- set for die cutting position.
7. Servo Control Die-cutter Optional.

MAIN PARAMETERS

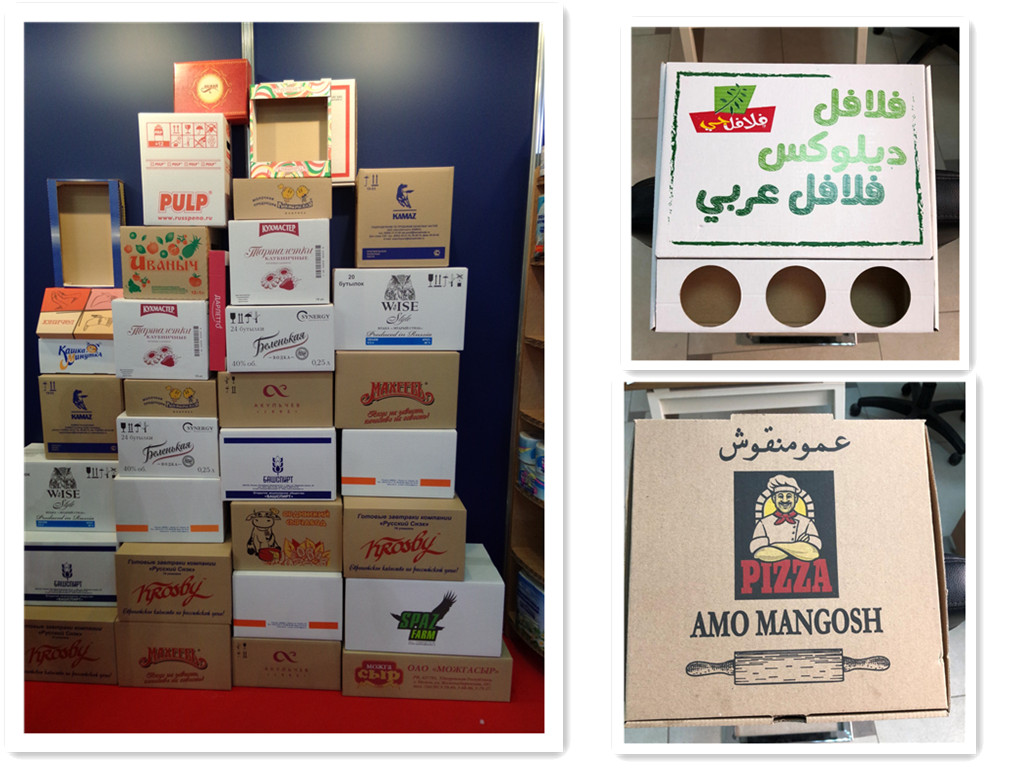

PRINTING PHOTO



CONTAINER LOADING PHOTO

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making
Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial
foundation and complete processing. We have accumulated a lot of experience and technology in the process of
production and serving customers, we are familiar with each industrial production process, takes this as the technical
basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous
Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully
automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish
Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton
Related Machines, can also custom made according to customer's requirements.

Toprint seeks to develop together with customers, customer demand is our pursuit, and we will meet the needs of
customers with high-quality products and good service. Products carry out lifelong service, long-term supply of spare
parts and after-sales service and etc..

Service commitment: 48 hours arriving of emergency failure (domestic),reply within 8 hours of pre-sale and after-
sale consultation.

We make difference,Dedicated, Professional, Pay attentions on Each Machine!
We make difference, Honestly Toprint, let every Customer being satisfied!
We make difference,Pioneering and Innovative, Excelsior,GD.Toprint!
We make difference,CR CHR Series take us to create Brilliant!
