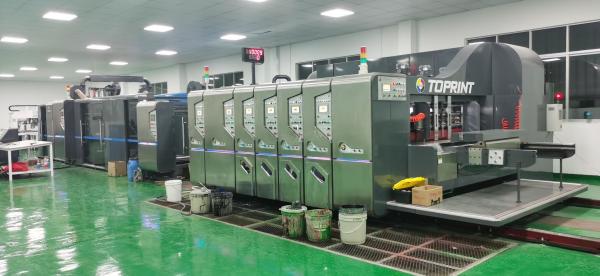

Full Automatic Flexo Printer Folder Gluer, High Speed Carton Box Making Machine, For All Kind Of Carton Boxes 1200x2400mm

General Specifications

1. TP-CR Series open & close type flexo folder gluer represents of Quality, Consistency, Efficiency and Economic.
2. High speed inline top flexo print casemaker with down folding provides a complete carton boxes producing solutions.
3. The machine is designed and made to high quality and safety standard, stable and consistency high printing quality maximize the production efficiency.

MAIN PARAMETERS

FEEDING SECTION

1. 1224 model Lead Edge Feeder equipped with 4 axis for transmission.
2. The extension dust removing system with 4 blower fans, 2 brushes, and anti-static system optional.
3. Skip feeding device to ensure large cardboard.
4. Auto zero-set for feeding position to reduce adjusting time.
5. Feeding gaps adjustment are computerized control with screen display.
6. Feeding volume is frequency control and can be adjusted according to cardboard size.
7. Servo Control Non-crush Feeding System as optional.

PRINTING SECTION

1. Top print with Vacuum Transfer System.
2. Highly accurate printing registration.
3. Printing Register servo control.
4. Laser engraved ceramic anilox roll, 250-350LPI.
5. Rubber Roller as standard, and chamber blade system is Optional.
6. With Surveillance System to check cardboard transmission situation.
7. Programming auto wash ink chamber system.
8. Auto zero- set for printing position.

SLOTTER CREASER SECTION

1. 8 shaft structure, pre-creasing, big-creasing, thin-creasing, slotting.
2. Separate shaft for pre-creaser and creaser ensures sufficient crushing and creasing.
3. Auto zero- set for slotting knife.
4. Slotting Register servo control.

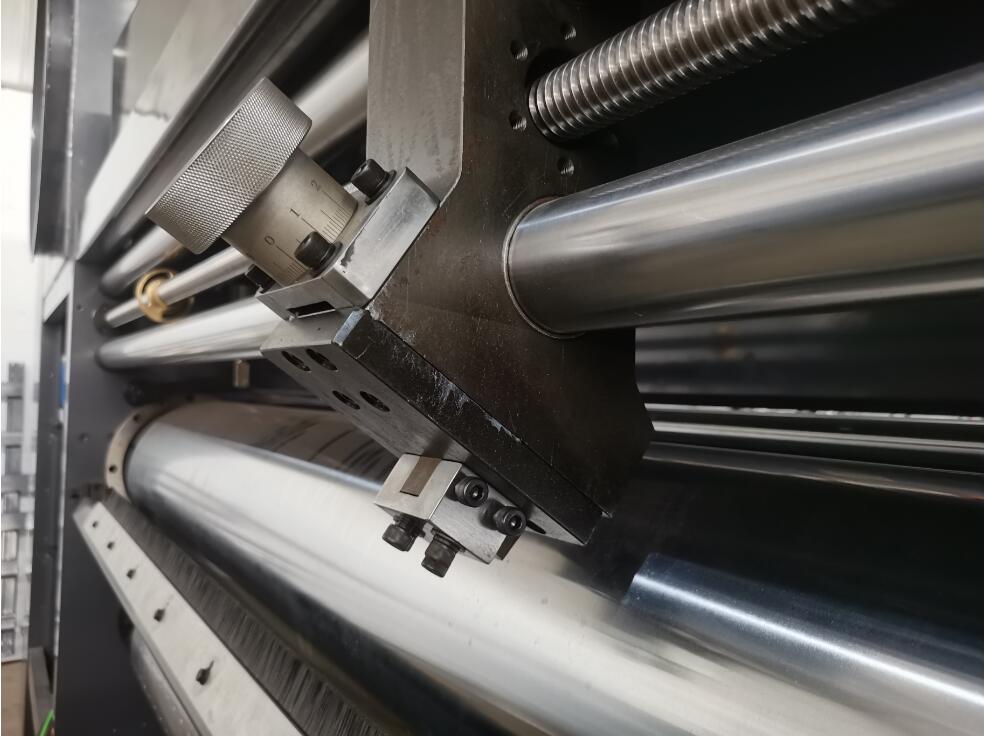

5. Slotting boss movements adopts linear guiding system match with ball screw, smooth movement.
6. Slotting boss adopts opposite insert structure, stable moving.

DIE CUTTER SECTION

1. Heavy duty die cutting cylinder.
2. Die-cutting Register servo control.
3. Line speed compensation frequency control.
4. With automatic grinding system for anvil cover.
5. Auto zero- set for die cutting position.

FOLDER GLUER & COUNTER EJECTOR

1. Top printing with down folding.
2. Both side folding side belts independent servo control.
3. Side guiding wheel servo control, and tracking box folded edge for accurate flap gap.
4. Main transmission belts with suction fan for accurate transmission.
5. Paper insert arm, paper press arm, paper holding device,
6. Upper suction belt with down folding for stable performance.
7. Whole paper holding device transmission and counter ejector belts all servo control for accurate counting and ejecting.
8. Top loading device for receiving and stacking boxes.
9. USA VALCO gluing system
10. Full closed unit for safety operation.
11. Quick positioning via AC servo control.
12. Full integrated construction with HMI control device.
