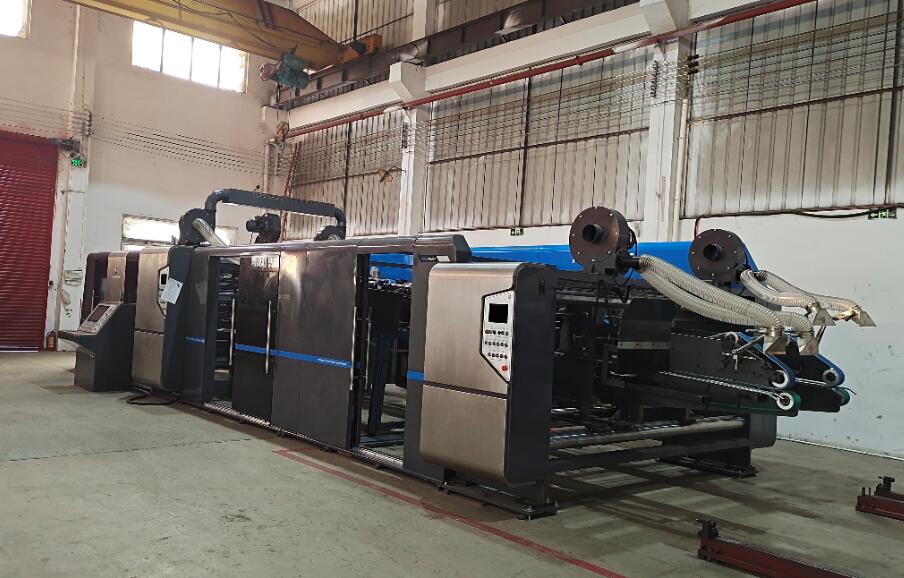

Full Automatic Flexo Folder Gluer Machine For Corrugated Carton Box Making 900x2000mm Model

Full Automatic Flexo Folder Gluer Machine, Flexo Folder Gluer, Carton Box Making Machine, For Corrugated Carton Box Making 900x2000mm Model

GENERAL SPECIFICATION

1. TP-CR Series open & close type flexo folder gluer can finish multi processes in one pass, such as feeding, printing, creasing, slotting, trimming, corner cutting, punching, die-cutting, folding, gluing, counting and ejecting.
2. The machine is designed according to high request and reliable function, humanization operation, it can set, change and memory orders in short time, with touch screen display.
3. All of drive rollers are made of super quality steel, hard chrome plated, with surface two times grinding, and make balance adjustment.
4. Transmission gears, planetary gear, registering gear, Axle sleeve gear are made from 20GrMnTi. Teeth carburized and quenched; the hardness is HRC58-62. Precisely ground and more stable running. (Ground by Germany High-Precise gear grinding machine. The precision grade up to 6.5
5. The machine with automatic lubrication and oil recycle system.

PARAMETERS OF MACHINE

FEEDING SECTION

1. Pressure Lead Edge feeder with vacuum transfer, suction volume is adjustable depends on the sheet size to make sure smooth feeding.
2. Main motor with start protection device, machine can’t run when units are not closed.
3. Continuous or Skip feeding is available.
4. Double feeding rollers, the upper rollers are covered with two layers of rubber.
5. Motorized adjusted of gaps or by order management.
6. Non-crush Feeding System is Optional

PRINTING SECTION

1. Printing plate fast change, with foot-switch control the rotate of cylinder clockwise or anticlockwise.
2. All the gaps mot
3. rinting register servo control.
4. Laser engraved ceramic anilox roll, 250-350LPI.
5. Rubber Roller as standard, and chamber blade system is Optional.
6. With Surveillance System to check cardboard transmission situation.
7. Programming auto wash ink chamber system.
8. Auto zero- set for printing position.

SLOTTER CREASER SECTION

1. 8 shaft structure, pre-creasing, big-creasing, thin-creasing, slotting.
2. Separate shaft for pre-creaser and creaser ensures sufficient crushing and creasing.
3. Auto zero- set for slotting knife.
4. Slotting Register servo control.
5. Slotting boss movements adopts linear guiding system match with ball screw, smooth movement.
6. Slotting boss adopts opposite insert structure, stable moving.

DIE CUTTER SECTION

1. Anvil cylinder is independent control for line speed compensation.
2. Heavy duty die cutting cylinder.
3. Die-cutting Register servo control, phase adjustment by PLC in 360 degree with digital display.
4. Anvil grinding system is equipped on the machine for anvil cover rapid use.
5. Auto zero- set for die cutting position.

FOLDER GLUER & COUNTER EJECTOR

1. Top printing with down folding.
2. Both side folding side belts independent servo control.
3. Side gluding wheels servo control, and tracking box folded edge for accurate flap gap.
4. Main transmission belts with suction fan for accurate transmission.
5. Paper insert arm, paper press arm, paper holding device,
6. Upper suction belt with down folding for stable performance.
7. Whole paper holding device transmission and counter ejector belts all servo control for accurate counting and ejecting.
8. Top loading device for receiving and stacking boxes.
9. USA VALCO gluing system
10. Full Closed unit for safety operation.
11. Quick positioning via AC servo control.
12. Full integrated construction with HMI control device.

For more details, please feel free to contact with us.

THANK YOU!!!

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making
Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial
foundation and complete processing. We have accumulated a lot of experience and technology in the process of
production and serving customers, we are familiar with each industrial production process, takes this as the technical
basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous
Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully
automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish
Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton
Related Machines, can also custom made according to customer's requirements.

Toprint seeks to develop together with customers, customer demand is our pursuit, and we will meet the needs of
customers with high-quality products and good service. Products carry out lifelong service, long-term supply of spare
parts and after-sales service and etc..

Service commitment: 48 hours arriving of emergency failure (domestic),reply within 8 hours of pre-sale and after-
sale consultation.

We make difference,Dedicated, Professional, Pay attentions on Each Machine!
We make difference, Honestly Toprint, let every Customer being satisfied!
We make difference,Pioneering and Innovative, Excelsior,GD.Toprint!
We make difference,CR CHR Series take us to create Brilliant!
