Cardboard Production Line, Corrugated Production Line, Paper Board Production Line

Nowadays, the manufacture of corrugated cardboards is becoming increasingly mature. All kinds of corrugated machines emerge as times require. We devoted itself to development of the most advanced and highest quality corrugated board making machine for about 20 years. Today, our corrugated cardboard production line is our great contribution to this packaging industry.

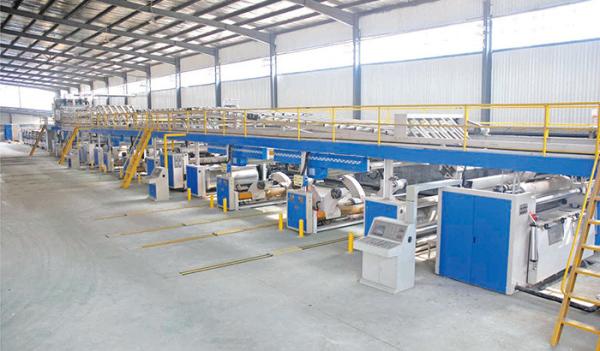

The complete corrugator is composed of several units that are connected by structural steel frame and conveying mechanism. Under the control of AC electromagnetic speed adjustment system (computer control), the corrugated cardboard production line can complete non-stop production from corrugated medium feeding to finished corrugated board discharging. It comes with high automation.

Working Principle

• Clamp the paper rolls on the mill stand that comes with shaft or not.
• Preheat the corrugated medium and linerboard on preheating cylinders and make them contain appropriate moisture.
• Feed the preheated medium and linerboard into the single facer and implement preheating once again.
• The top corrugated roll and bottom corrugated roll will press the corrugated medium to form flute. This is joined to a flat linerboard with adhesive to form single face board.
• Through lifting device, the single face corrugated board will be lifted to the overhead bridge conveyor and then be conveyed to the multiple pre-heater. During slow conveying, the single face board can be naturally dried.
• After being heated in the multiple pre-heater, the board will be conveyed into the gluing machine for another gluing.
• Then, via drying, bonding and cooling, we can get formed and flat corrugated boards.
• Further, in the slitter scorer, the corrugated board can be cut into required width. Via cross cutter, finally, the corrugated board with needed specifications can be produced.

Main Features of Corrugated Cardboard Production Line

• We provides all kinds of corrugation machines with breadth of 1.6-2.5m and machine speed of 60-180m/min. Our production line can produce 3-7 ply corrugated cardboards with various flute sizes. In addition, the corrugated boards come with uniform flute, high strength and precise size.
• The single facer of our corrugated cardboard production line employs vacuum suction type feeding. Corrugated rolls are processed by high precision CNC grinding machine. The largest diameter reaches Φ408mm.
• The double facer adopts fully modular design, realizing any combination of 10-21 heating boxes. Our double facer comes with the latest structure which can effectively avoid the disadvantages of traditional structures, thus improving production speed and reducing waste rate as well as lowering main motor power and decreasing driving belt wear.
• Rotary cross cutter of our corrugated cardboard production line is driven by servo motor which is controlled by computer, thus achieving high accuracy cutting.
• Thin blade slitter scorer is designed with 1.2m blades. During slitting, the paperboard edge is flat and has no burr and cracking. The blade boasts air cooling device and automatic re-sharpening device. Blade arrangement is controlled by computer. The time for changing specifications is 5-15 seconds.
• This corrugated cardboard production line is equipped with a lift type slitter which makes sure that the thin blade can cut the paperboard from its side, thus effectively avoiding printing side-lay edge and improving greatly printing quality.
• High speed feed double stacker is controlled by PLC with touch screen which is easy for man-machine interaction. The main motor features variable frequency control, thus saving energy. The stacker is available in automatic and manual options, reducing labor strength.

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making
Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial
foundation and complete processing. We have accumulated a lot of experience and technology in the process of
production and serving customers, we are familiar with each industrial production process, takes this as the technical
basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous
Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully
automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish
Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton
Related Machines, can also custom made according to customer's requirements.

Toprint seeks to develop together with customers, customer demand is our pursuit, and we will meet the needs of
customers with high-quality products and good service. Products carry out lifelong service, long-term supply of spare
parts and after-sales service and etc..

Service commitment: 48 hours arriving of emergency failure (domestic),reply within 8 hours of pre-sale and after-
sale consultation.

We make difference,Dedicated, Professional, Pay attentions on Each Machine!
We make difference, Honestly Toprint, let every Customer being satisfied!
We make difference,Pioneering and Innovative, Excelsior,GD.Toprint!
We make difference,CR CHR Series take us to create Brilliant!
