Full Automatic Folder Gluer With Flexo Printing Slotting Die Cutting Machine Box Folder Gluer Machine Chinese Made, High speed with full servo control of folder gluer

GENERAL SPECIFICATIONS

1. TP-CR Series open & close type flexo folder gluer represents of Quality, Consistency, Efficiency and Economic.
2. High speed inline top flexo print casemaker with down folding provides a complete carton boxes producing solutions.
3. The machine is designed and made to high quality and safety standard, stable and consistency high printing quality maximize the production efficiency.

Main Parameters

FEEDING SECTION

1. Automatic feeding system with lead edge vacuum roll system, section force
2. hold-down device aids the feeding of warped board. Skip feeding for large board.
3. Automatic return to zero position.
4. Automatic control of side guide position, digital display.
5. Motorized control of front stop position, operate by push bottom.
6. Motorized control of feeding roll nip control, memory display.
7. Both always feeding and skip feeding is available.
8. Dust remover to ensure high quality of printing.
9. Pneumatic unit locking system, easy to operate.

PRINTING SECTION

1. Automatic return to zero position.
2. Automatic / Motorized control of register, digital display.
3. Motorized control of printing cylinder transverse: 15 mm.
4. Motorized impress roll nip control.
5. Pneumatic unit locking system, easy to operate.
6. Automatic engagement and release of anilox / printer cylinder when feeder starts and stops.
7. Simple construction made economical cost.
8. Standard anilox roller. (Ceramic anilox roller / chamber doctor blade available.)
9. Vacuum transfer for printing unit is available.

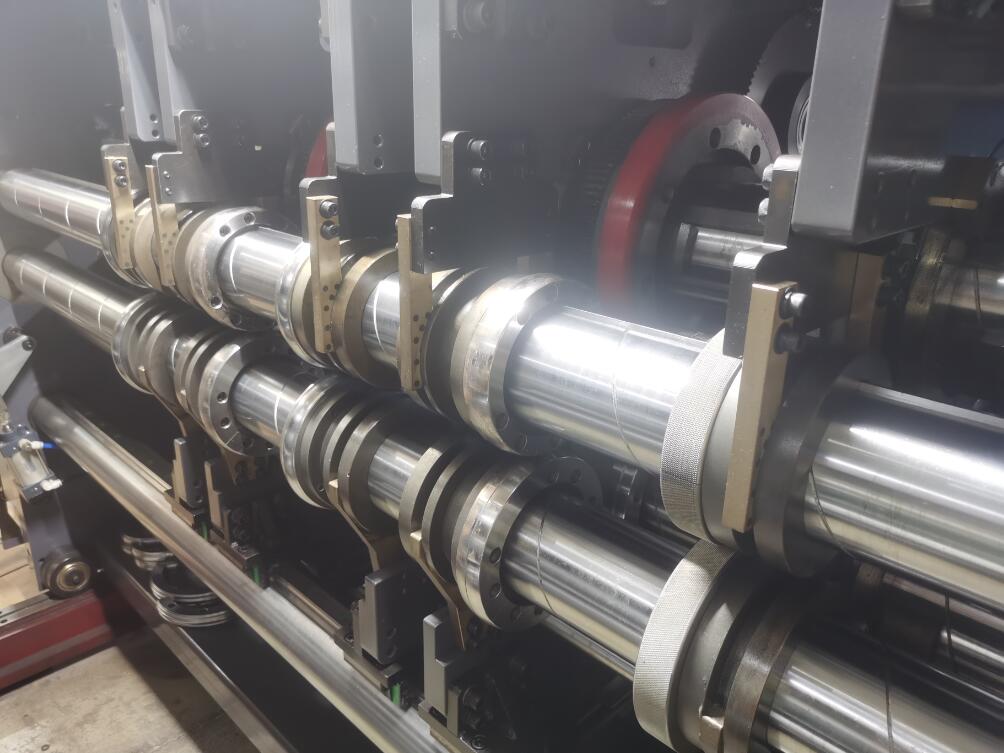

SLOTTER CREASER SECTION

1. Automatic return to zero position.
2. Automatic change panel size, digital display.
3. Automatic control of slotting depth, digital display.
4. Automatic control of box height, digital display.
5. Motorized of lower creaser nip control, memory display.
6. Motorized of lower slot shaft nip control, memory display.
7. Double slot system make slot more accuracy.
8. Pneumatic unit locking system, easy to operate.
9. Automatic change order, make printing more convenience.
10. If there is no die-cutting unit attached, automatic dust remover belt can be attached.

DIE CUTTER SECTION

1. Automatic return to zero position.
2. Pneumatic unit locking system, easy to operate.
3. Automatic dust remover belt is attached.
4. With auto-restore and auto-compensation function, can effectively extend the using life of rubber.
5. Motorized of Die roll register by touch screen display
6. Motorized of Die roll side control by touch screen display
7. Motorized of Anvil roll clearance by touch screen display
8. Motorized of Pull roll nip control by touch screen display

FOLDER GLUER & COUNTER EJECTOR

1. Down folding system
2. Suction belt transportation system
3. Box squaring system
4. Computer control of box size
5. Side guide position by touch screen control
6. Glue head position by touch screen control
7. Top loading stacking type counter ejector
8. Suction belt conveyor
9. Automatic accurate calculation and automatic ejecting
10. Front stop position by Touch screen display
11. Back stop position by Touch screen display
12. Ejecting counter by Touch screen display

For more details, please feel free to contact with us.
