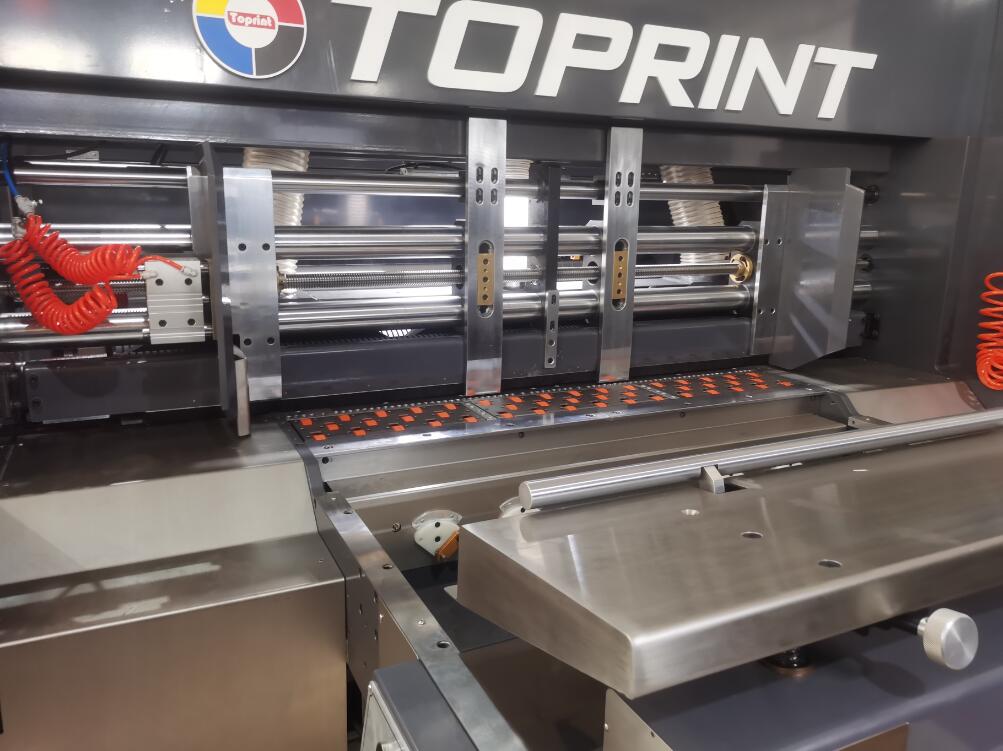

Carton Box Maker Box Folder Gluer Automatic Flexo Printer Slotter Die-Cutter Folder Gluer Strapper Inline Machine

GENERAL SPECIFICATIONS

1. The latest industrial surface design with stainless steel gear cover, good performance, easy to clean and maintain.
2. By using industrial computer with friendly HMI to reduce the multi-function buttons and simplify the steps of order setting to make the machine friendly use and easy set up to increase your productivities.
3. Surveillance system in each printing unit to monitor the cardboard transmission situation, reduce waste.

MAIN PARAMETERS

FEEDING SECTION

1. Lead edge feeder with accurate feeding for all flutes.
2. Benefits for wend and wrap cardboard.
3. With suction motor and anti-static bushes for dust remove.
4. Available for skip feed.
5. Auto zero-set for feeding position.
6. Non-crush feeder Optional.
7. All gap adjustment via eccentric device with digital display.
8. Frequency inverter drive with variable suction control.

PRINTING SECTION

1. Top print, vacuum transfer of cardboard.Benefits for all kind of cardboard.
2. Register servo control with high accurate printing registration.
3. Laser engraved ceramic anilox roll.
4. Standard model equipped with Rubber Roller, and chamber blade system is Optional.
5. Surveillance System equipped to check cardboard transmission situation.
6. with auto wash ink chamber system.
7. Auto zero- set for printing position.

SLOTTER CREASER SECTION

1. Printing unit design with 8 shaft structure.
2. Pre-creasing, creasing, re-creasing, single shaft dual slotting.
3. All the gaps computerized control or by order management system.
4. Slotting boss movement adopts linear guiding rail match with ball screw for smooth moving.
5. Slotting boss with opposite insert structure to ensure min. size cardboard and smooth movement.
6. Auto zero- set for slotting knife.
7. Register servo control.

DIE CUTTER SECTION

1. Heavy duty die cutting drum.
2. Automatic grinding system is used to prolong the life time of anvil cover.
3. Frequency control of line speed compensation.
4. Register servo control.

FOLDER GLUER

1. Top printing with down folding folder gluer for stable performance.
2. Suction bests for straitly movement.
3. USA Valco gluing system, easy to adjust.
4. Full closed unit for safety operation.
5. Quick positioning via AC servo control.
6. Full integrated construction with HMI control device.
7. 9 servo control for accurate folding and counting and ejecting.
8. Side guiding wheel, Main transmission belts, Paper insert arm, paper press arm, paper holding device, and Whole paper holding device transmission and counter ejector belts all servo control for accurate counting and ejecting.
9. Upper suction belt with down folding for stable performance.
10. Top loading device for receiving and stacking

For more information, please feel free to contact with us.

THANK YOU!!!

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making
Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial
foundation and complete processing. We have accumulated a lot of experience and technology in the process of
production and serving customers, we are familiar with each industrial production process, takes this as the technical
basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous
Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully
automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish
Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton
Related Machines, can also custom made according to customer's requirements.

Toprint seeks to develop together with customers, customer demand is our pursuit, and we will meet the needs of
customers with high-quality products and good service. Products carry out lifelong service, long-term supply of spare
parts and after-sales service and etc..

Service commitment: 48 hours arriving of emergency failure (domestic),reply within 8 hours of pre-sale and after-
sale consultation.

We make difference,Dedicated, Professional, Pay attentions on Each Machine!
We make difference, Honestly Toprint, let every Customer being satisfied!
We make difference,Pioneering and Innovative, Excelsior,GD.Toprint!
We make difference,CR CHR Series take us to create Brilliant!
