Automatic Corrugated Rotary Die Cutting Machine for Corrugated Boxes Making Automatic Rotary Slotter

BRIEF INTRUCTION

Automatic Rotary Slotter, one of post-printing equipment, is specially designed to process corrugated cardboard with slotting, trimming, hole punching and creasing, to improve the quality of up folding.

The standard model of automatic rotary slotter has SP-DS1625. Also can customized other size according to customer’s requirement.

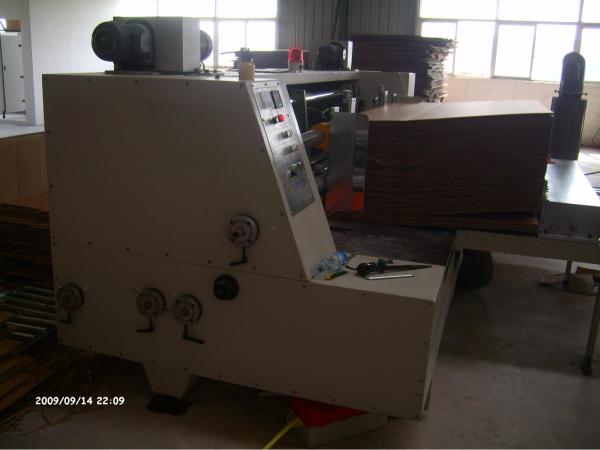

MACHINE PHOTOS

SPECIFICATION

FEATURES

1. Sheet feed automatically by Back kicker, edge trimming, creasing, slotting and flap cutting are automatically continuous and can be done at one time. Hole punching is available if need.
2. The feeding roller is made of steel pipe coated by rubber, which is grooved in face in order to protect the paperboard from damage.
3. The assistance of air suction pulls the bend paperboard from the front gate to the rubber rollers. The air volume of suction is manually adjustable according to the sheet size.
4. Slotting register is motorized with 3600 planetary gears structure. Adjustment with digital makes more accuracy and convenience is available.
5. Carton Height is motorized adjustable and synchronously controlled by four groups slotting head. It saves the time of debugging and testing to improve work efficiency.
6. The horizontal position of the slotting holders is motorized.
7. The gaps between slotting head, the creasing rings as well, is manually adjustable with dial display.
8. Lubrication oil system supply for every gears area. It helps noise reduction and gears wearing.
9. 3 trimming knife is detachable.

ADVANTAGES

1. High capability-Stitching: Maximum output up to 6000 per hours
2. Labor saving: 2-3 worker
3. Easy Job: Order changing by 5 min. No need training.
4. Wide range application: Be used to agriculture, food, logistics and industrial packaging.
5. Acceptability in Precision: Pass rate is more than 99%

ACCURACY

Guangdong Toprint Machinery Co., Ltd (Short for Toprint) is a professional manufacturer of Carton Box Making
Machines, providing Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector and etc...

Toprint is located in Shishan Town, Nanhai District, Foshan City, a Pearl River Industrial Area with strong industrial
foundation and complete processing. We have accumulated a lot of experience and technology in the process of
production and serving customers, we are familiar with each industrial production process, takes this as the technical
basis, and the continuous investment on R & D, in line with the principle of Honesty & Pragmatism, Continuous
Innovation, Strengthening Management, Consummating Service, Quality First, Brand Oriented, to Serve the all
customers.

Toprint Main Products: Vacuum Transfer type Fully automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully
automatic flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector; Optional for Dry-well Unit, Vamish
Unit, Servo Control Die-cutting Unit, Automatic Pre-feeder, Vibrator, Automatic Counter Stacker and other Carton
Related Machines, can also custom made according to customer's requirements.

Toprint seeks to develop together with customers, customer demand is our pursuit, and we will meet the needs of
customers with high-quality products and good service. Products carry out lifelong service, long-term supply of spare
parts and after-sales service and etc..

Service commitment: 48 hours arriving of emergency failure (domestic),reply within 8 hours of pre-sale and after-
sale consultation.

We make difference,Dedicated, Professional, Pay attentions on Each Machine!
We make difference, Honestly Toprint, let every Customer being satisfied!
We make difference,Pioneering and Innovative, Excelsior,GD.Toprint!
We make difference,CR CHR Series take us to create Brilliant!
