    Corrugated Carton Box Slitting Machine , Thin edge slitter scorer

    Ask Lasest Price
    Brand Name : Starpack
    Model Number : SP-BF2000/2500/3000
    Certification : Patent Certificate, CE Certificate
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 5 Sets per Month
    Delivery Time : 45-55 days
    • Product Details
    • Company Profile

    Corrugated Carton Box Slitting Machine , Thin edge slitter scorer


    Corrugated Carton Box Slitting Machine Die Cutting Machine Thin Edge Slitting Scoring Machine


    BRIEF INTRUCTION

    Thin Edge Slitting Scoring Machine, one of pre-printing equipment, is specially designed for dividing or slitting one big size corrugated cardboard into many small size pieces. It also equipped with creasing wheels and counter stacker.

    The standard model of thin edge slitting scoring machine includes SP-BF2000/2500/3000. Also can customized other size according to customer’s requirement.

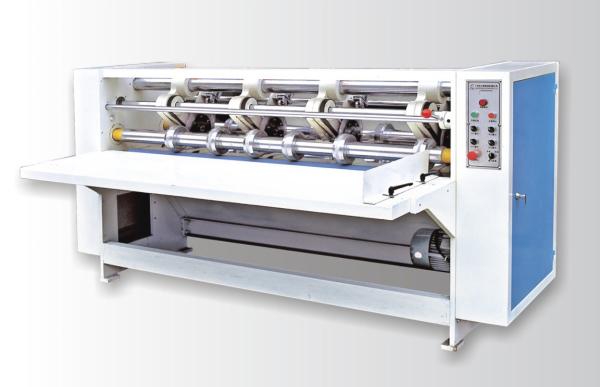

    MACHINE PHOTOS


    SPECIFICATION

    ModelSP-BF2000SP-BF2500SP-BF3000
    Suitable feeding width(mm)200025003000
    Max. speed of machine (m/min)140140140
    Cutting edge(set)4 slitter 6 scorer4 slitter 6 scorer4 slitter 6 scorer
    Min. slitting width(mm)150150150
    Min. creasing width(mm)150150150
    Edge diameter(mm)250250250
    Size of configuration(L×W×H)(mm)2650×1560×13003000×1600×13603600x1650x1300
    Motor power(kw)334.5
    Weight(kg)150015001800
    Blade thickness(mm)111

    FEATURES

    1. Sheet feed manually one by one.
    2. Pre-creaser ensure the feeding smoothly, 6 shafts in one.
    3. With thin edge knife (the thickness is 1 mm), the cutting edge of paper will be more beautiful and clean.
    4. The polishing device can be automatically, and manual one is available.
    5. Through the pre-creasing,slitting and then creasing, it improves the line pressing.
    6. The feeding rollers is coated by the rubber to protect the surface of the paperboard.
    7. The thin edge knives is driven by gear, and the bridge gear is made of plastic one for easy care.

    ADVANTAGES

    1. High capability: Maximum output up to 10000 pcs per hours
    2. Labor saving: 1-2 workers
    3. Easy Job: Order changing by 2 min. No need training.
    4. Wide range application: Be used to agriculture, food, logistics and industrial packaging.
    5. Acceptability in Precision: Pass rate is more than 99%

    ACCURACY

    Slitting≤ ± 1 mm
    Creasing≤ ± 1 mm
