Full Automatic Folding Gluing Machine Auto Folder Gluer Carton Box
Making Machine for Carton Box Folding Gluing with High Speed and
Easy to Operate
SUMMARY OF MACHINE
Folding Gluing Machine is also named as Automatic Folder Gluer or
Automatic Folding Gluing Machine, this is one of the main machine
used for making Corrugated Carton Boxes, and this machine will be
used after cardboard pass Flexo Printer Slotter Machine, then use
this machine for Gluing, Folding and Ejecting, after that can match
with Automatic Strapping Machine.
This machine can finish the process of Feeding, Gluing, Folding,
Counting and Ejecting, and can set the quantities of Ejecting like
10pcs, 20pcs or similar quantities.

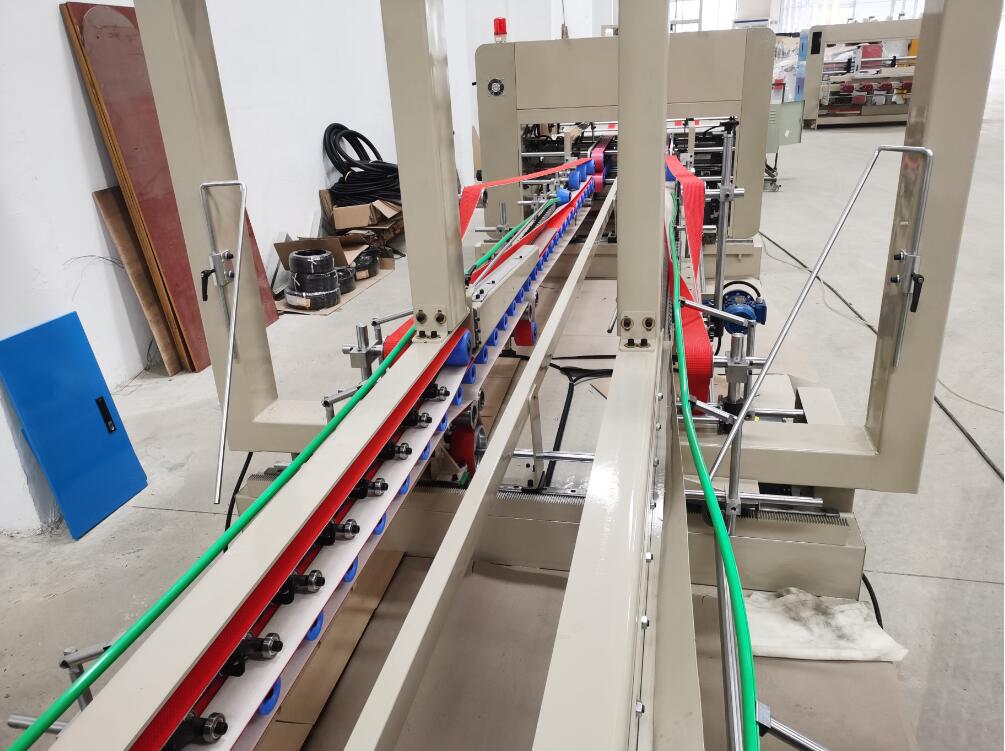

MACHINE PHOTOS
THE MAIN FEATURES:
It can suitable for bend cardboard after adjusting height of
cardboard feeding.
The electromagnetism clutch in high quality, it can make the
feeding part control paper inside alone and easy operation and
reliable.
Pressing line wheel is adjusting, the thickness of cardboard can be
2-8mm.
It is with twice creasing structure, it can process the cardboard
in low quality.
- Apply gluing and folding part:
It is with easy and controllable device to control gluing amount
and clean easily.
Stainless gluing wheel, apply gluing evenly and save gluing amount.
It adopts imported durable rubber and feeding cardboard by belt.
It is with correction and pressing line device and adjustable
pressing line wheel.
Principle if count to stacking is easy and reliable.
It is controlled by digital and easy operation, keep working to
input data, count automatically and output accurate.
It has function with correction tolerance can be adjustable.
Output counter adopts pneumatic and accurate movement and fast.
- The whole machine features:
AFG fully automatic gluing and folding machine and it consist of
vacuum adsorption feeding part, gluing and folding part and
stacking and counterpart. It adopts frequency to change speed and
controlled by standard PLC touch screen, easy operation and
reliable, the average speed can up to 150 sheets/min. High speed
and energy-saving and save labor.
THE MAIN PARAMETERS:
RELATED MACHINES
Automatic Strapping Machine
Flexo Printer Slotter
Flexo Folder Gluer
MACHINE PHOTOS

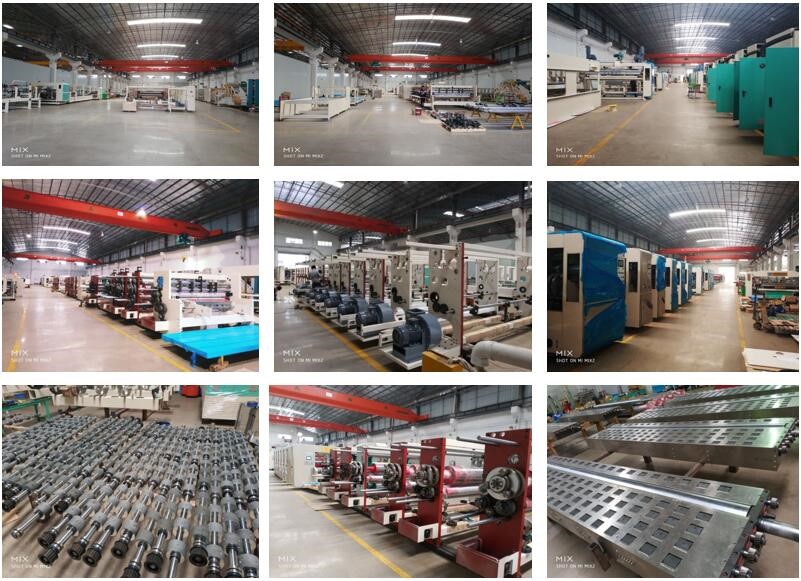

FACTORY PHTOS
