Automatic Corrugated Carton Box Gluing Machine Folder Gluer Machine
High Speed Competitive Price and Stable Running from Foshan China
SUMMARY OF MACHINE
AFG Automatic folder gluer machine mainly consists of three parts:
feeding part, folding gluing part and stacking counting part, full
machine frame made by good quality steel welded.
It adopts PLC programming control, touch screen operation and
frequency conversion to adjust speed. The average speed about
150sheets/min, with high speed, saves power and labor.
This machine can finish the process of Feeding, Gluing, Folding,
Counting and Ejecting, and can set the quantities of Ejecting like
10pcs, 20pcs or similar quantities.
MACHINE PHOTOS

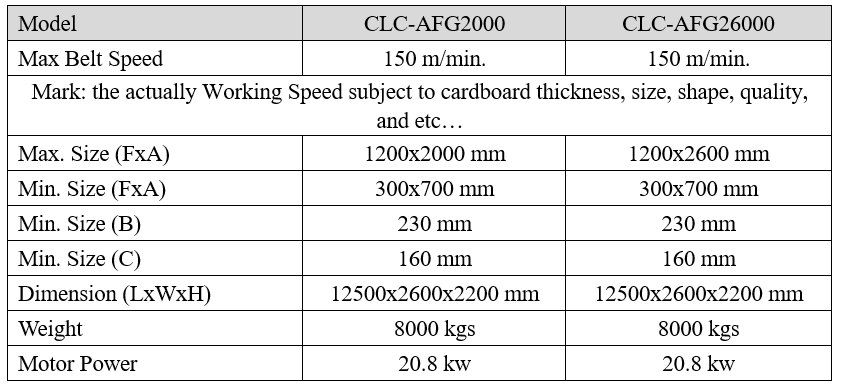

THE MAIN PARAMETERS:
MACHINE PHOTOS
THE MAIN FEATURES:
The feeding unit adopts belt type lead edge with vacuum device,
which is more benefits for wend and wrap cardboard.
Good quality electromagnetic clutch and brake system, feeding part
can be controlled separately, easy operation.
Suitable for 3/5/7ply with the thickness from 2-10mm
With Re-creasing wheels, much better for Folding accuracy.
- Apply gluing and folding part:
Adopts Gluing wheel structure, easy to adjust and maintain.
With pump for automatic glue recycle, no need to stop the machine
for adding glue.
Imported wearable rubber belt convey board, automatically folding.
Equipped with board correction and scorer correction device.
Stacking and counting are simple and reliable
Digital control, easy operation and reliable. Non-stop enter data,
automatically counting and output accurately.
With correction function, correct deviation
Counting and output by pneumatic control, fast and accurately
- The whole machine features:
AFG fully automatic gluing and folding machine and it consist of
vacuum adsorption feeding part, gluing and folding part and
stacking and counterpart. It adopts frequency to change speed and
controlled by standard PLC touch screen, easy operation and
reliable, the average speed can up to 150 sheets/min. High speed
and energy-saving and save labor.
